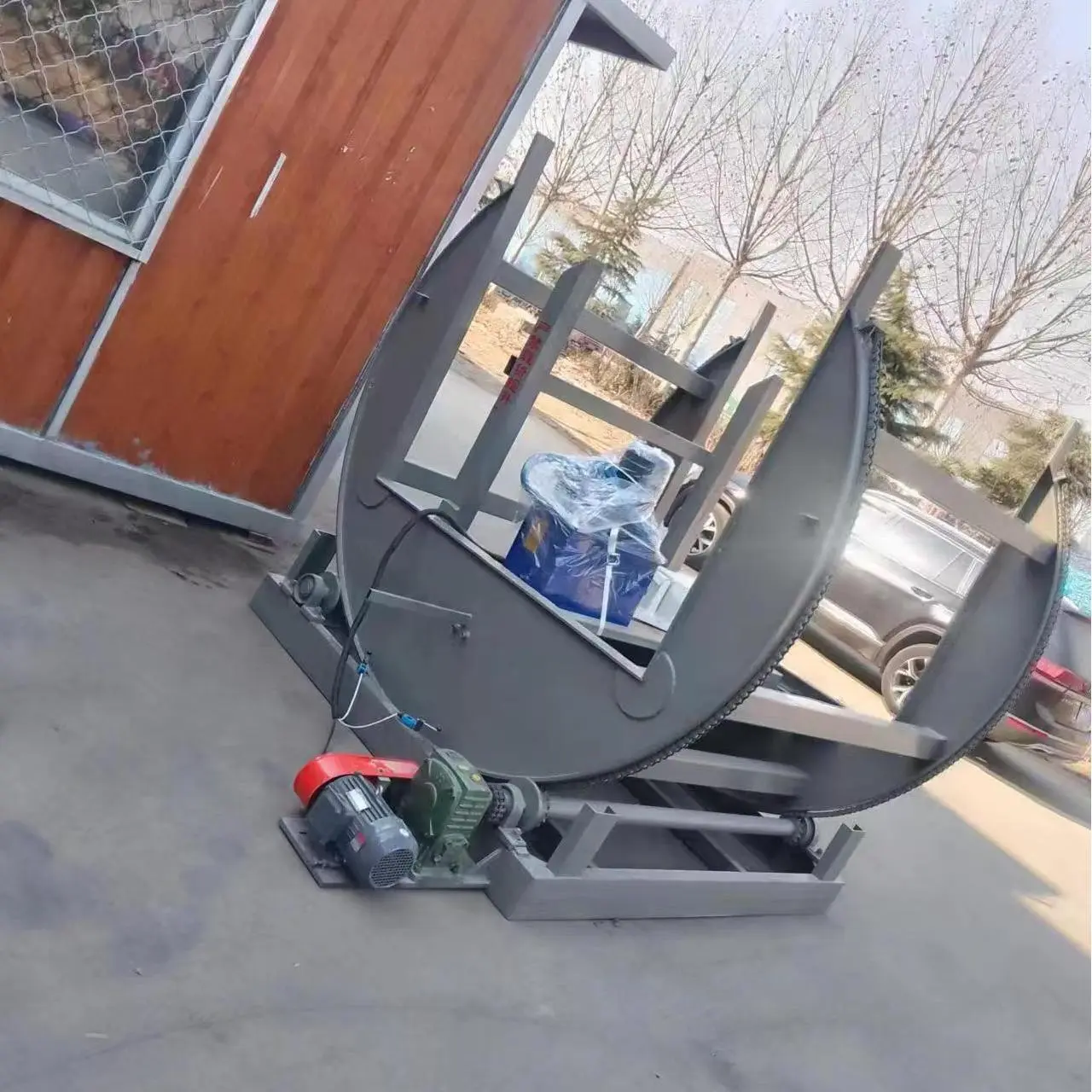

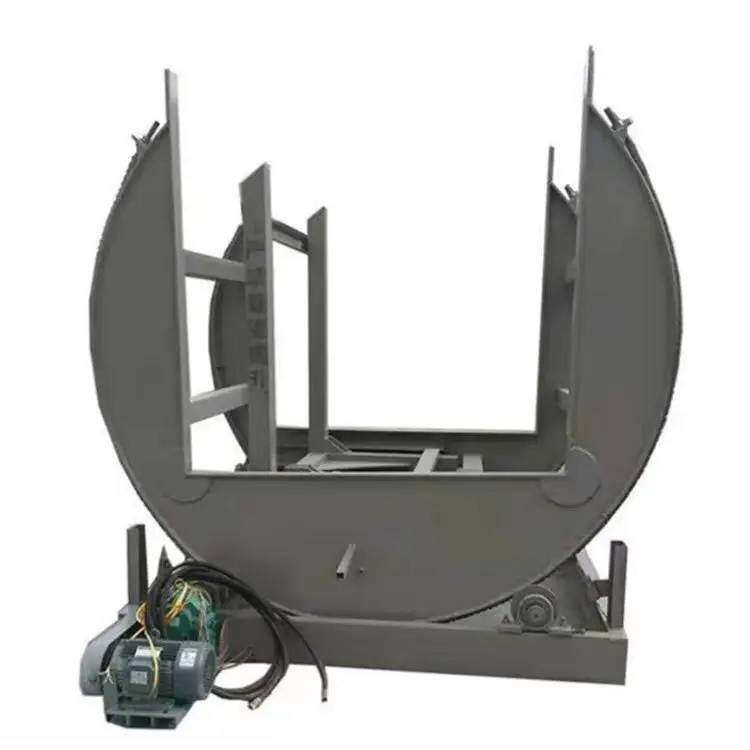

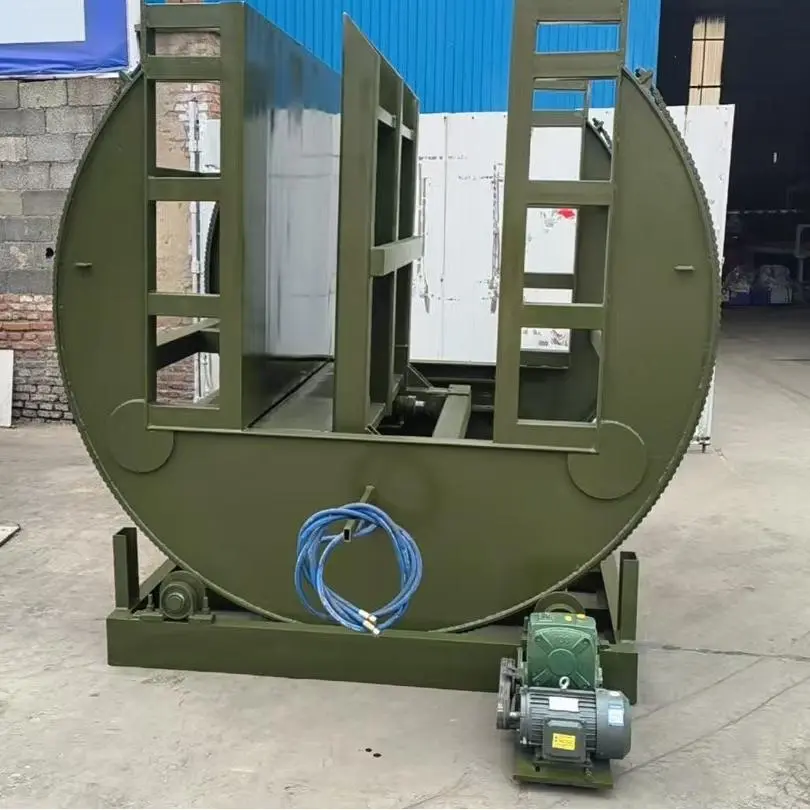

Plywood Turnover Machine
This machine is one of the auxiliary machines for board production. It can be used for side flipping of plywood and particleboard during the production process, as well as for overall flipping of packaged boards, reducing labor intensity.
Description
Features:
- The machine’s robustness can handle large load capacities.
- The 180-degree tilt improves product contact.
- Compact footprint – does not extend beyond the basic frame in the tilted position.
- Equipped with high-strength precision oil cylinders and imported seals, ensuring good sealing performance to prevent leakage and other issues, enhancing overall equipment safety.
- The tabletop features high-quality baked paint for rust and corrosion resistance, with additional steel reinforcement for better load-bearing capacity.
- The equipment is equipped with power failure protection, and the lifting platform will stop moving up or down when the emergency button is pressed.
Technical Parameters:
| Max.open files | 1250mm |
| Cylinder work stroke | 500mm |
| rotation anle | 0-180 degree |
| Reverse size | 1250*2600mm |
| turn over Motor power | 3kw/4KW |
| hydrulic power motor | 2.2KW |
| Physical size | 2400*2000*2220mm |
| Total weight | 1800kg |
| board plate | MDF,particle board,plywood,gysum board |
FAQ
How should I pay for my order?
A: You’ll need to pay a 30% deposit to start production. Once the machine is finished, we’ll send you pictures or videos. After you pay the remaining balance, we’ll ship the machine.What is the delivery time?
A: Standard machines usually take 10-15 days. Customized machines may take 15-30 days depending on the specifications.How are the products packaged?
A: We typically use wooden crates or plastic film for packaging. Wooden crates are for consolidated shipping, while plastic film is used for full-container shipments.Do you offer warranty services?
A: Yes, we offer a 12-month warranty on the machine. If any issues arise during normal use, we’ll provide spare parts free of charge. Plus, you’ll receive lifetime technical support and service.Do you provide installation services?
A: Yes, we offer installation assistance. For most machines, we’ll guide you through the process via online meetings or detailed video instructions. For more complex machines that require on-site setup, our technical team can visit your factory to install and ensure everything runs smoothly. Please note, travel expenses for our technicians are your responsibility.
